Survival cells
The tub is tested to a written load case before the car races — pass the test, build the car; fail it, go home.
01The test is the rule

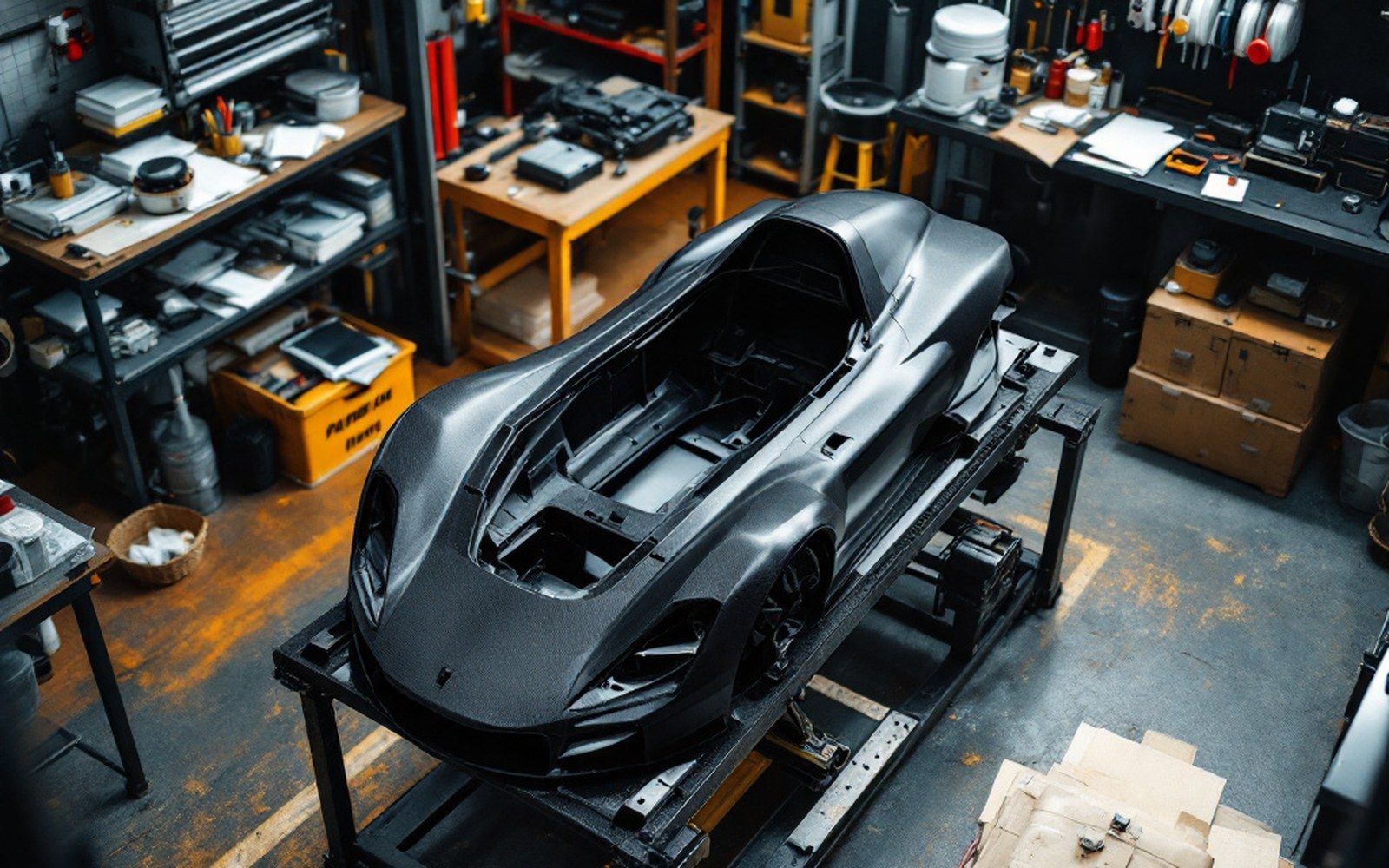

A survival cell — the structural shell that encloses the driver — earns its place in a race entry not by looking strong but by surviving a published sequence of static and dynamic load cases. The FIA specifies the forces, the directions and the pass/fail criteria in the Technical Regulations; the manufacturer applies those loads to the physical structure at an approved test facility, and the result either clears homologation or it does not. There is no engineering judgement call on the day of the race. Scrutineers at parc fermé check that the tub in front of them matches the approved structure; the load test already happened in a laboratory.
The concept formalised gradually through Formula One's history, but it hardened into mandatory crush-test requirements through the 1980s, a decade shaped by the recognition that cockpit integrity — not just roll hoops or harnesses — was the variable a regulation could actually control. The survival cell as a defined homologation item appears in successive editions of Appendix J and the F1 Technical Regulations as a discrete object: it must pass, and the pass is documented.
Chronology of concept
- 1980scrush and load-case requirements begin appearing as mandatory pre-race tests in F1 Technical Regulations
- Carbon-fibre monocoques adopted by leading F1 teams in the early 1980s; regulations codify structural tests to match
Modern tests load the nose structure, the side of the cockpit, the roll hoop, and the fuel-tank area — each axis addressed separately. A typical side-impact test pushes a prescribed load perpendicular to the car's centreline at a defined point on the cockpit surround; the structure must absorb the energy within a maximum crush distance and show no failure in the survival volume. The steering column, the pedals and the harness attachment points are separately checked. Nothing is assumed from the choice of material; carbon fibre's anisotropic properties mean that a tub can be stiff in one axis and brittle in another, and the test matrix is designed to find that.
Modern tests load the nose structure, the side of the cockpit, the roll hoop, and the fuel-tank area — each axis addressed separately.
The test-is-the-rule principle matters because it closes the gap between intention and measurement. A team cannot argue that their cell would have passed; it either did or it did not, before the car left the factory. When John Barnard's McLaren MP4/1 established the moulded carbon tub as structurally practical in the early 1980s, the regulations followed quickly with load cases precise enough to make the structure a verifiable fact rather than a design philosophy.
